Q5559: When your Aircraft Landing Lamps are not performing
Overview
Introduction
Aircraft lamps are exposed to extreme climatic and vibration conditions, which can result in short life expectancy and frequent lamp change – outs.
Amglo Kemlite addresses this problem head on due to its flexible manufacturing, which allows for off–line processes to be implemented that can greatly enhance product performance on aircraft.
Over the past years Amglo’s exterior aircraft lamps have gained significant market acceptance as Amglo has updated many of the outdated incandescent designs to Quartz Halogen technology.
Amglo and Proponent
Proponent is an authorized global distributor of all Amglo Kemlite products.
This relation provides customers with the highest quality Quartz Halogen lights.
Proponent is the new identity representing Kapco Global and Avio-Diepen as one united company, and the unique capabilities that the new organization brings to the aerospace market. With extensive experience in supporting the MRO, OEM and airline markets, our organization offers innovative inventory and supply chain management solutions to OEM and aftermarket customers.
Your needs
The Q5559 Amglo’s new 600-watt Quartz Halogen Aircraft Landing Lamp is an addition to AMGLO’s comprehensive line of Quartz Halogen Sealed-Beam products that uses innovative halogen technology to last up to 12 times longer than the interchangeable standard incandescent lamps like the 4559.
The new lamp has a life rating of 300 hours and even triples the life of its predecessor, the Q4559X.
The special coil and the design of the mount technology maximize light output and life, allowing for increased efficiency and decreased maintenance costs. Mind you a change out takes roughly 1.5 hours.
The replacement is a "drop in" replacement.
Your benefits
The Amglo Q5559 quartz halogen aircraft lamp incorporates the latest lighting technologies and the advantages include:
- Lowest cost of ownership (labor costs outweigh the lamp costs).
- Outperforms legacy Q4559X by 200 hours.
- Filament design exceeds ANSI life requirements producing consistent light output that is maintained throughout lamp life time ensuring safety requirements are met.
- Specialized filament process that prevents sag and arc-outs
- Minimized weight of the halogen capsule assembly reduces cyclic vibration failures
- Offline annealing process prevents lens cracking
- Drop in replacement: uses the same fixtures as the Q4559X
- Boeing IPC Approved (March 2014)
Product Description

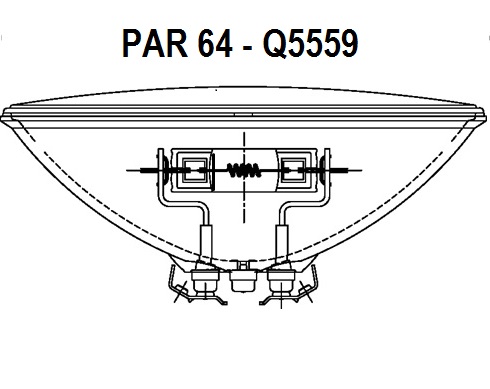

Q5559 Quartz Halogen Aircraft Landing Lamp
- Lamp Type: Sealed Beam
- Bulb: PAR64
- Base: Screw Terminals
- Filament: CC-6
- Product Technology: Halogen
- Wattage (NOM) / Voltage (NOM): 600W / 28W
- RATED LIFE (NOM): 300 hrs.
Your benefits
The Amglo Q5559 quartz halogen aircraft lamp incorporates the latest lighting technologies and the advantages include:
- Lowest cost of ownership (labor costs outweigh the lamp costs).
- Outperforms legacy Q4559X by 200 hours.
- Filament design exceeds ANSI life requirements producing consistent light output that is maintained throughout lamp life time ensuring safety requirements are met.
- Specialized filament process that prevents sag and arc-outs
- Minimized weight of the halogen capsule assembly reduces cyclic vibration failures
- Offline annealing process prevents lens cracking
- Drop in replacement: uses the same fixtures as the Q4559X
- Boeing IPC Approved (March 2014)
