LED Sealed Beam Replacement Lamps for Part 25 aircraft
Overview
Introduction

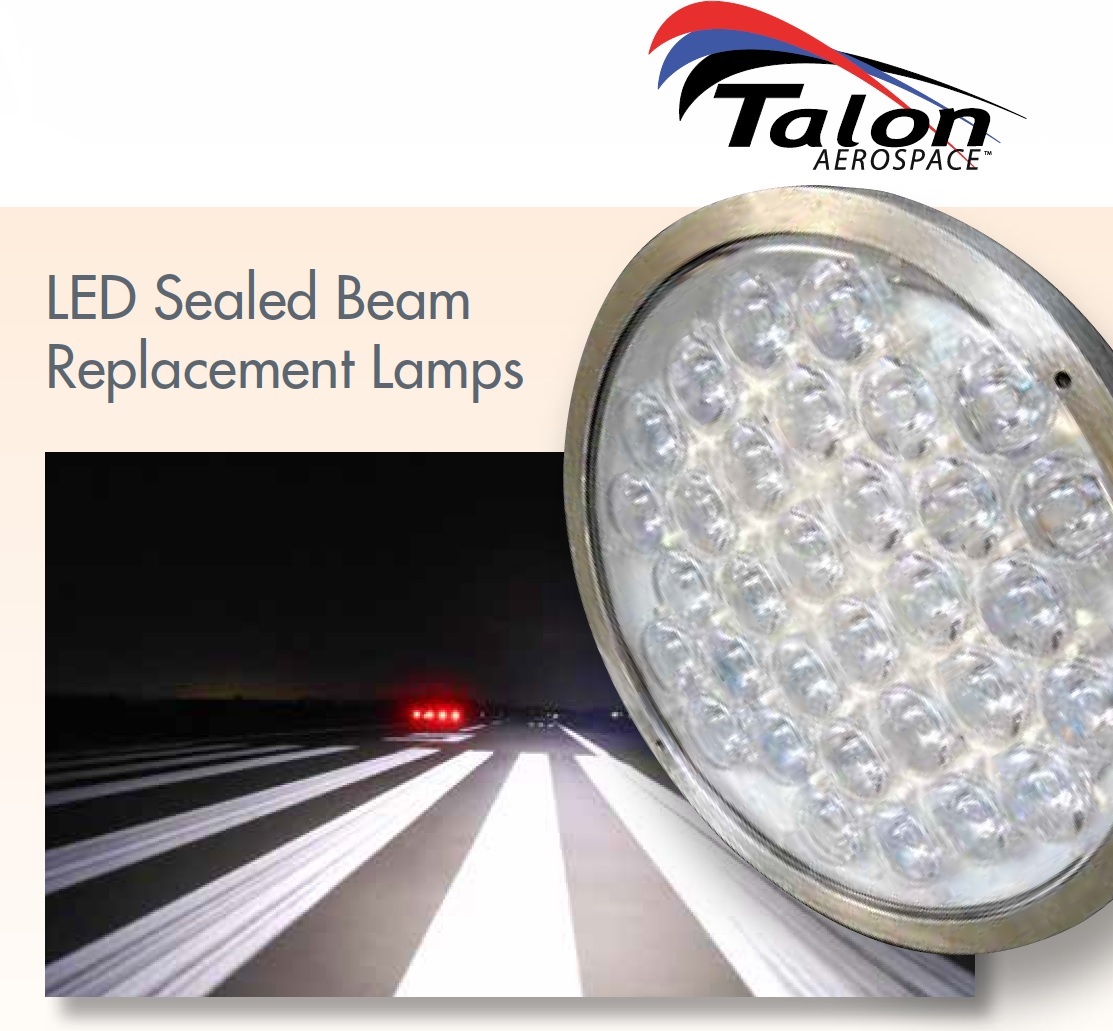

LED Sealed Beam Replacement Lamps from Talon
Get Light-Years ahead of your competition!
Talon Aerospace sealed beam replacement lamps are designed to allow for plug and play replacement of the existing sealed beam lamps fitted on an aircraft. Talon has 3 sizes available, with replacements for the Par 64 landing, Par 46 taxi and Par 36 logo, runway turn-off, engine and wing scan applications. The existing sealed beam lamps have a design life span between 25 and 300 hours while the Talon LED replacements are designed for 20,000 in service hours.
Light output is comparable to OEM lamps and the Par 64 landing light and Par 46 taxi light are designed to meet Mil Spec standard MIL-L-6503H. The LED replacements work with the existing transformers on the aircraft and are designed to minimize the overall LRU count within an operator inventory. The LED replacement lamps are designed with cool white LEDs to maximize light output but the Par 36 logo is also made available in warm white. Par 36 LED replacement lamps operate on both 13V and 26V AC, while the Par 46 and 64 operate on 26 VAC. All lamps can also operate on 28VDC, allowing for rotorcraft applications.
Talon LED sealed beam are designed at comparable weight to existing sealed beam lamps of equal size, allowing them to be used in existing fixtures. The current draw for the LED lamp is significantly lower compared to the existing units. Landing light Q4559X draws 650W while Talon LED replacement TAE0728-1 draws only 104W.
The LED replacement lamps are fully repairable and operator can replace individual components like the LED board, power supply and lens in case of failures, reducing cost of ownership.
Talon and Proponent
Proponent is the exclusive global distributor of all Talon Aerospace products. This relation provides customers with the latest generation of LED lights.
Proponent
Proponent is the new identity representing Kapco Global and Avio-Diepen as one united company, and the unique capabilities that the new organization brings to the aerospace market. With extensive experience in supporting the MRO, OEM and airline markets, our organization offers innovative inventory and supply chain management solutions to OEM and aftermarket customers.
Your needs
- High reliability
- Easy replacement
- Low cost of ownership
Your benefits
- Talon's LED Sealed Beam Lamps come with a 5 year warranty and are designed for 20,000 in service hours, while existing halogen lamps have an end of life between 25 and 300 hours.
- Plug and Play replacement, using the existing fixtures and existing transformer
- Talon offers substantial savings for operators in fewer change outs, lower spares inventory and lower labor costs. e.g. The LED replacement lamps are fully repairable and operator can replace individual components like the LED board, power supply and lens in case of failures, reducing cost of ownership.
Product Description
-
LED drop-in replacement for various sealed beam landing, taxi, runway turn-off, logo, engine and wing scan applications.
-
Designed for over 20,000 hours of service life
-
Light output comparable to OEM lamp
-
Par 64 landing and Par 46 taxi lights designed to meet MIL-L-6503H
-
LED lamps are fully repairable and carry a five year warranty
-
Polycarbonate lens material covered with diamond carbon coating reduces abrasion and FOD damage
-
LED lamps will work with existing transformers
-
All lights tested to meet DO-160G.
- FAA / EASA STC Approved
Available now:
PN: TAE0728-1, LED Landing Light, Par 64, Cool White, replacement for 4552, 4559, Q4559, Q4559X, Q5559
PN: TAE0728-1D, LED Taxi/Take-Off Light, Par 64, Cool White, replacement for 4557, 5557
PN: TAE0628-1, LED Landing Light, Par 46, Cool White, replacement for 4553, 4580, 4581, Q4681, Q4655
PN: TAE0628-1V, LED Landing Light, Par 46, Cool White, replacement for 4635
PN: TAE0628-2, LED Taxi Light, Par 46, Cool White, replacement for 4551, 4554, Q4554, Q5551, Q4597
PN: TAE0528-1, LED Taxi/Turn/Logo Light, Cool White, Par 36, replacement for 4594, Q4631, Q4632
PN: TAE0528-1W, LED Taxi/Turn/Logo Light Par 36, Warme White, replacement for 4594, Q4631, Q4632
PN: TAE0528-1X, LED Landing Light High Intensity, Cool White, Par 36, replacement for 4596, 5596
PN: TAE0528-2, LED Taxi/Turn/Logo Light Par 36, Cool White, replacement for 4626, Q4626, 4587
PN: TAE0528-2W, LED Taxi/Turn/Logo Light Par 36, Warm White, replacement for 4626, Q4626, 4587
PN: TAE0528-3, LED Logo Light Par 36, Cool White, replacement for 4713
PN: TAE0528-3W, LED Logo Light Par 36, Warm White, replacement for 4713
Talon LED Sealed Beam replacement lamps use optics assemblies that allow us to duplicate various beam patterns.
Approved Model List Includes most part 25 aircraft models:
-
Airbus
-
Boeing
-
ATR
-
Beechcraft
-
Bombardier
-
Cessna
-
Dassault
-
EADS CASA
-
Embraer
-
Fokker
-
Gulfstream
-
Learjet
-
McDonnell Douglas
-
Saab
Don’t see your lamp listed above, please contact us and we will gladly explore providing you with an alternate LED lamp.
