LED Logo Light to replace Halogen based logo lights
Overview
Introduction
Talon Aerospace LED logo light Assemblies to replace Halogen replacement.
Do you recognize the following problems with your existing logo lights?
-
Halogen bulbs are replaced frequently
-
Lights are installed in difficult to reach areas and requires use of cherrypicker or lift
-
Lens sealant does not have sufficient time to dry, leading to moisture ingress within horizontal stabilizer
-
Transformer requires frequent replacement
-
Incandescent bulb color temperature changes appearance of corporate logo
Get Light-Years ahead of your competition!

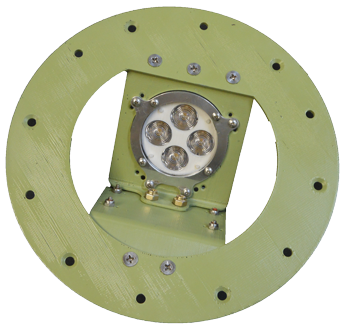

Talon Aerospace LED logo light assemblies are designed to allow for plug and play replacement for the existing HLX64621 halogen bulb based logo lights. Talon uses a rack to replace the OEM logo light housing. The LED module and transformer assembly are mounted to the rack. The OEM aircraft connector is mounted on the transformer assembly, making the LED logo light assembly plug and play.
The lens, lens gasket and hardware can be retained from the OEM unit, but Talon does make replacement lenses available for most applications. The Talon logo light assemblies operate on 115VAC 400Hz aircraft power. A transformer within the assembly steps the voltage down to 14V to power the LED module. All internal connectors are circular mil-spec connectors.
Approved Model List:
- Airbus A320
- Airbus A330
- Airbus A340
- Boeing B737NG
- Boeing 757
- Boeing 777
Planned for Approval:
- Embraer Embraer E170, Embraer E175, Embraer E190, Embraer E195
Talon and Proponent
Proponent is the exclusive global distributor of all Talon Aerospace products.
This relation provides customers with the latest generation of LED lights.
Proponent
Proponent is the new identity representing Kapco Global and Avio-Diepen as one united company, and the unique capabilities that the new organization brings to the aerospace market. With extensive experience in supporting the MRO, OEM and airline markets, our organization offers innovative inventory and supply chain management solutions to OEM and aftermarket customers.
Your needs
Durability:
Designed for over 20,000 hours of service life, LED module is fully repairable with a five year warranty.
Easy replacement:
The transformer assembly has the OEM aircraft connector integrated, making this unit virtually plug and play. Both the transformer assembly and LED module are line replaceable units.
Less failures:
The unit operates on 115VAC 400 Hz aircraft power and the transformer reduces voltage to 10-14VAC range. An internal power supply rectifies and filters the current going into the LED board. Power draw for the unit drops from 100W for the OEM unit to 14W for the LED unit.
Your benefits
- Less Maintenance saving valuable time, becasue of the 20.000 hours service life
-
The Talon logo light assembly also provides weight savings; about half a pound per unit.
-
The power draw is considerably reduced as the Talon LED unit only draws 14W compared to 100W for the OEM unit.
-
The LED module and transformer assembly are line replaceable and the LED module is fully repairable as well.
-
Light output is comparable to the existing units.
-
Two color temperatures are available for Talon’s LED logo lights; a cool white unit (6500 Kelvin) and a warm white unit (4000 Kelvin).
Product Description
Talon uses a rack to replace the OEM housing, a transformer assembly which housing the OEM aircraft connector, an LED module available in warm and cool white. The lens is retained from the OEM unit.
Product Overview
- LED plug and play replacement for halogen based OEM logo lights
- Designed for over 20,000 of service life.
- LED lamps are fully repairable and carry a five year warranty
- Optics assemblies allow for duplication of various beam patterns
- Available in warm white and cool white
Talon LED Logo Light Replacement Assemblies
Eligibility: Boeing B757, B777, Airbus A320
PN: TAE0428-1 / TAE0428-1W
Description: LED Module
Color: Cool White / Warm White
Approval: FAA/EASA STC approved
Eligibility: Boeing B737NG
PN: TAE0428-2 / TAE0428-2W
Description: LED Module
Color: Cool White / Warm White
Approval: FAA/EASA STC approved
Eligibility: Airbus A330, A340
PN: K428-A3-LGL-001 / K428-A3-LGL-001W
Description: LED Logo Light Kit
Color: Cool White / Warm White
Approval: FAA/EASA STC approved
Install Kits for:
Boeing B737NG, Partnumber: K428-B3-LGL-001/-002
Boeing B757, Partnumber: K428-B5-LGL-001/-002/-003/-004
Boeing B777, Partnumber: K428-B7-LGL-001/-002/-003/-004
Airbus A320, Partnumber: K428-A2-LGL-001
Talon developed the LED module to allow it to be used in a variety of different halogen based light applications. This includes wing scan lights, logo lights and other general illumination lights. Don’t see your application listed but looking to replace a halogen based light application, please contact your Avio-Diepen representative.
Your benefits
- Less Maintenance saving valuable time, becasue of the 20.000 hours service life
-
The Talon logo light assembly also provides weight savings; about half a pound per unit.
-
The power draw is considerably reduced as the Talon LED unit only draws 14W compared to 100W for the OEM unit.
-
The LED module and transformer assembly are line replaceable and the LED module is fully repairable as well.
-
Light output is comparable to the existing units.
-
Two color temperatures are available for Talon’s LED logo lights; a cool white unit (6500 Kelvin) and a warm white unit (4000 Kelvin).
