Installation of a Talon Retractable Searchlight and Landing Light using LED lamps

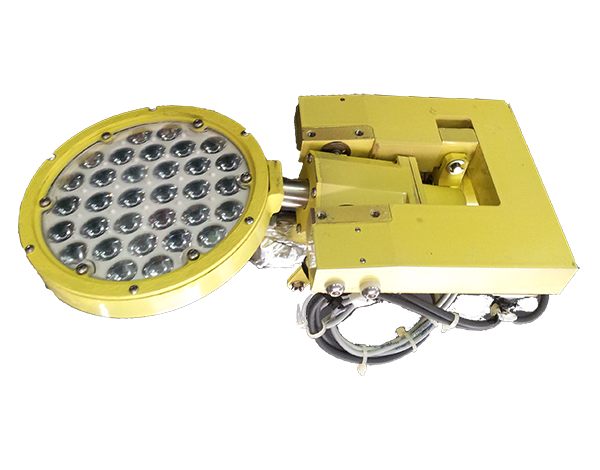

The Talon Aerospace Retractable Search Light is designed to replace the existing incandescent fixture installed on various Bell 206/407 platforms, but will also fit various other rotorcraft applications. Talon designed the unit with a modular approach, allowing the replacement of the retractable searchlight and landing light (if equipped) with LED versions.

The retractable searchlight has 2 available bulb inserts, a full white LED insert which maximizes white light output as well as a mixed white LED/ Infrared LED unit which provides night vision mixed with white light output.

Talon and Proponent

Proponent is the exclusive global distributor of all Talon Aerospace products. This relation provides customers with the latest generation of LED lights.

Proponent

Proponent is the new identity representing Kapco Global and Avio-Diepen as one united company, and the unique capabilities that the new organization brings to the aerospace market. With extensive experience in supporting the MRO, OEM and airline markets, our organization offers innovative inventory and supply chain management solutions to OEM and aftermarket customers.

The unit has an improved mechanical design with solid state electronics, digital motor controller and auto-stow functionality.

The existing incandescent sealed beam lamp used for this application has a 10 hour design life. The Talon LED searchlight has a 20,000 design life, eliminating frequent maintenance activities.

For retrofit Talon supplies the retractable searchlight with an installation kit which includes a carbon fiber mounting panel, a thermoform inner liner and all required hardware to mount the unit to the helicopter. For some applications Talon also can supply a separate LED landing light mounted on the panel. A mil spec connector on the housing allows for quick line maintenance replacement.

The retractable searchlight is compatible with existing cockpit controls.

Product Overview
• LED retractable searchlight upgrade for various rotorcraft applications
• Improved mechanical design
• Unit can be equipped with either all white search light or partial white/infrared light
• Unit compatible with currently existing cockpit controls
• Designed to provide 20,000 in service hours
• Modular design allows operator to replace retractable searchlight and landing light with LED versions
• Retractable searchlight and landing lights are fully repairable
• Designed to meet DO-160G and Mil STD 461 test requirements
