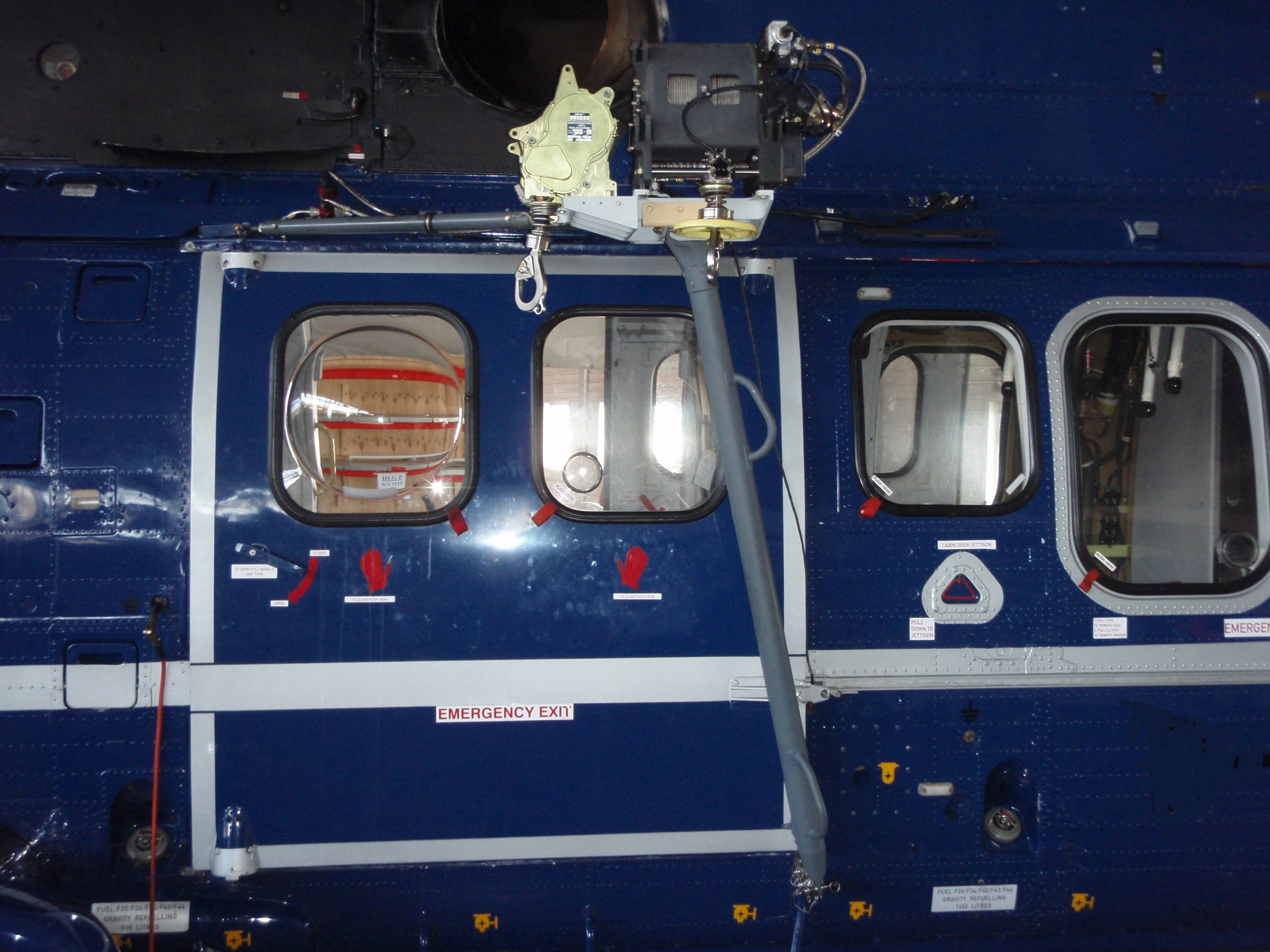

Heli-One offers upgrade of Super Puma rescue hoist from 75 m Variable speed single hoist (as minimum start configuration) to a dual hoist system.  The system consists of one Goodrich Hydraulic Hoist P/N 76368-500 and one Goodrich electric standby hoist P/N 76371

Improved hydrauc hoist. Reliable standby hoist for one person/stretcher if main hoist fails

This upgrade will give a reliable hoist system with backup option if the main hoist fails.

 The design is approved by an EASA STC and is fully operational in Super Puma helicopters.

 Available for AS332L/L1

Goodrich 76368-500 Hydraulic hoist:

Operating Load          265.2 kg (585 lb)

Useable Cable Length 90 m (295 ft)

Lowering Speed          0 to 0,9 m/s

Hoisting Speed            0 to 0,9 m/s

Cable Diameter          4,76 mm (3/16 in).

Goodrich 76371 El. standby hoist:

Operating Load          135 kg (300 lbs)

Useable Cable Length 33.5 m (110 ft)

Lowering Speed          0 – 0,82 m/s

Hoisting Speed            0 –0,7 m/s

Cable Diameter          3,7 mm (5/32 in).
