Fokker Services Underwater Locator Device (ULD) for Boeing aircraft
Overview
Introduction
Events related to aircraft missing over oceanic areas have led to several new requirements, amongst which is the introduction of a stand-alone long-range Underwater Locator Device (ULD). Based on this requirement, we are pleased to provide you our offer, which is based on the delivery an integrated package including all related documentation and materials. Note that the ULD is not to be confused with the Underwater Locator Beacons (ULB) as installed on the CVR and FDRs. The ULD is complementary to the ULB and is mounted to the aircraft structure.
Our ULD mod will be mounted on the aircraft structure free of sound absorbent materials and not in wing sections or empennage, we certified multiple locations in a variety of aircraft types. The installation is in accordance with ARINC specification 667, which describes the removal, installation and maintenance aspects of an ULD installation.
Your needs
A solution for an affordable ULD installation in line with the latest requirements.
Your benefits
Fokker Services Underwater Locator Device (ULD) solution is affordable and easy-to-install.
Product Description

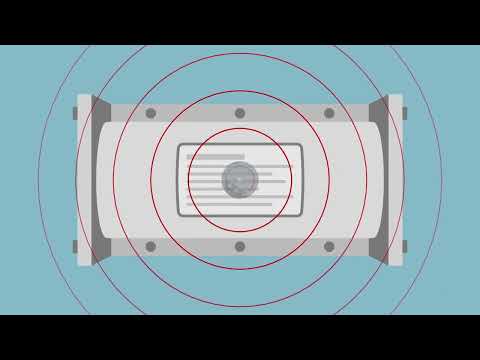

The ULD itself will transmit an 8.8 kHz acoustic signal (pinger) for a minimum of 90 days. Its low frequency will ensure an increased detection range of 13-22 km (7-12 NM) over the standard ULBs as installed on the FDRs and CVRs.
The maximal operational depth is 6100 m (20.000 ft) while activated upon immersion in both salt and fresh water. The battery is a single-cell type, non-hazardous with a six-year life.
ICAO states that by January 1st 2018 aircraft flying long range over water with a MTOW>27.000 kg must be equipped with an ULD. Long range over water is determined by the exceedance of the distance from a suitable emergency landing spot. The distance corresponds to 120 min at cruise speed or 400NM whichever is the lesser.
EASA states that by January 1st 2019 Passenger aircraft flying long range over water with a MTOW>27.000 kg and cargo aircraft with MTOW > 45.500kg must be equipped with an ULD. Long range over water is determined by a distance >180 NM from shore.
CASA states per CASR 121 MOS 11.64 that aircraft a MTOW>27.000 kg carrying a life raft should have an ULD by December 2, 2023.
Other authorities have accepted similar rules.
Your benefits
Fokker Services Underwater Locator Device (ULD) solution is affordable and easy-to-install.
