Installation of Single/Dual Collins GPS-4000. Limited to installation on Bombardier CL-600-2B19, serial number 7584 ONLY.

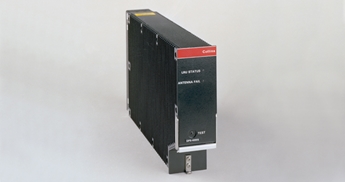

The Rockwell Collins GPS-4000A Global Positioning System Sensor provides GPS-based navigation and enables GPS-based approaches for aircraft equipped with flight management systems.

The GPS-4000A uses up to 12 GPS satellites. However, the system enables you to calculate navigation with a minimum of four satellites with acceptable geometry or three satellites plus calibrated barometric altitude. With additional satellites, the Receiver Autonomous Integrity Monitoring (RAIM) detects and isolates defective satellites while improving navigation accuracy. The unit’s predictive RAIM capability determines if the future satellite geometry at the destination airport will support planned arrival procedures.

Key Features & Benefits Collins GPS-4000A:

• Fully integrated with the Rockwell Collins Pro Line 4™ and Pro Line 21™ systems
• Provides terminal and en route navigation solutions
• Provides nonprecision approach navigation
• Supports primary means GPS navigation in oceanic/remote areas
• Supports RAIM, Predictive RAIM and FDE
• Supports on-board loading of application software/li>
• 12-channel, TSO C129 (B1) compliant GPS receiver
• 2 MCU, ARINC 743A compliant
• DO-160D qualified
• Growth to SBAS to support GPS primary means navigation and nonprecision approaches with vertical guidance
