Installation of a Laptop Stowage/Charger Assembly for Class I EFB
Overview
Introduction
STC ST01118CH supports installation of a laptop stowage/charger assembly behind the flight crew seats in accordance with Electronic Cable Specialists (ECS) Master Data List ECS-980089.
Your needs
Designed to assist flight crews with maintaining a clutter free flight deck while charging a tablet style laptop.
Your benefits
The assembly approved by STC ST01118CH allows flight crews to stow a laptop computer when the device is not in use. In addition, the aircraft modification incorporates the ability to charge the laptop computer’s battery while the device is stowed.
Product Description
STC Aircraft Effectivity
- 737-100 Series
- 737-200 Series
- 737-300 Series
- 737-400 Series
- 737-500 Series
- 737-700 Series
- 737-700C Series
- 737-800 Series
- 737-900 Series
- 737-900ER Series
STC Limitations
- STC only approves the installation of the Laptop Stowage/Charger Assembly.
- STC does not approve the use of the laptop computer.
- Laptop Stowage/Charger Assembly is only intended for Class 1 EFB systems per AC 120-76A.
STC Configurations
- Configuration 1: Laptop Stowage/Charger Assembly installation on second observer seat legs;
Boeing 737-100/-200/-300/-400/-500/-700 series aircraft.
- Configuration 2: Laptop Stowage/Charger Assembly installation on second observer seat legs;
Relocation of a log book hold to the first observer’s seat legs;
Boeing 737-300/-500 Series Aircraft.
- Configuration 3: Modifies Configuration 1 to draw power from a 28 VDC ground service bus
Boeing 737-100/-200/-300/-400/-500/-700 series aircraft.
- Configuration 4: Laptop Stowage/Charger Assembly installation on second observer seat legs;
Boeing 737-700/-700C/-800-/-900/-900ER series aircraft.
- Configuration 5: Laptop Stowage/Charger Assembly installation on second observer seat legs;
Relocation of a log book hold to the first observer’s seat legs;
Boeing 737-300/-500 series aircraft.
PRODUCT DESCRIPTION

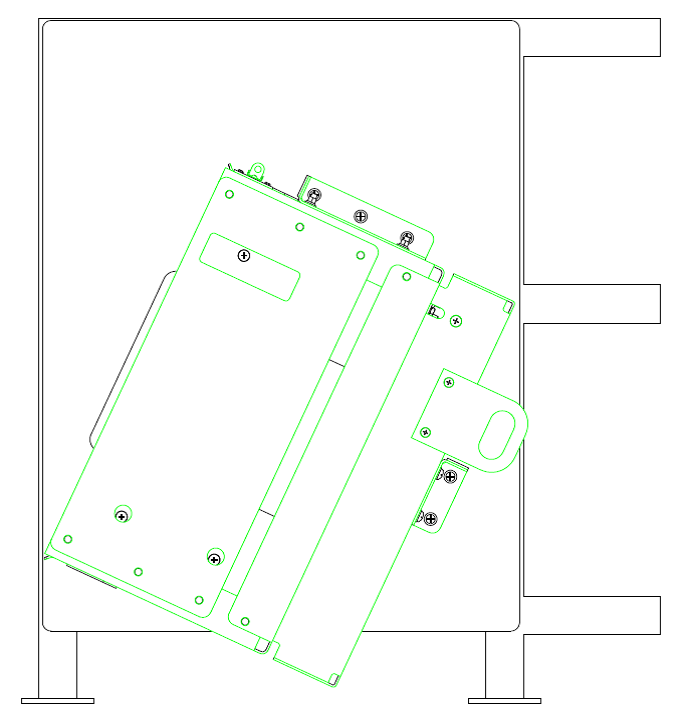

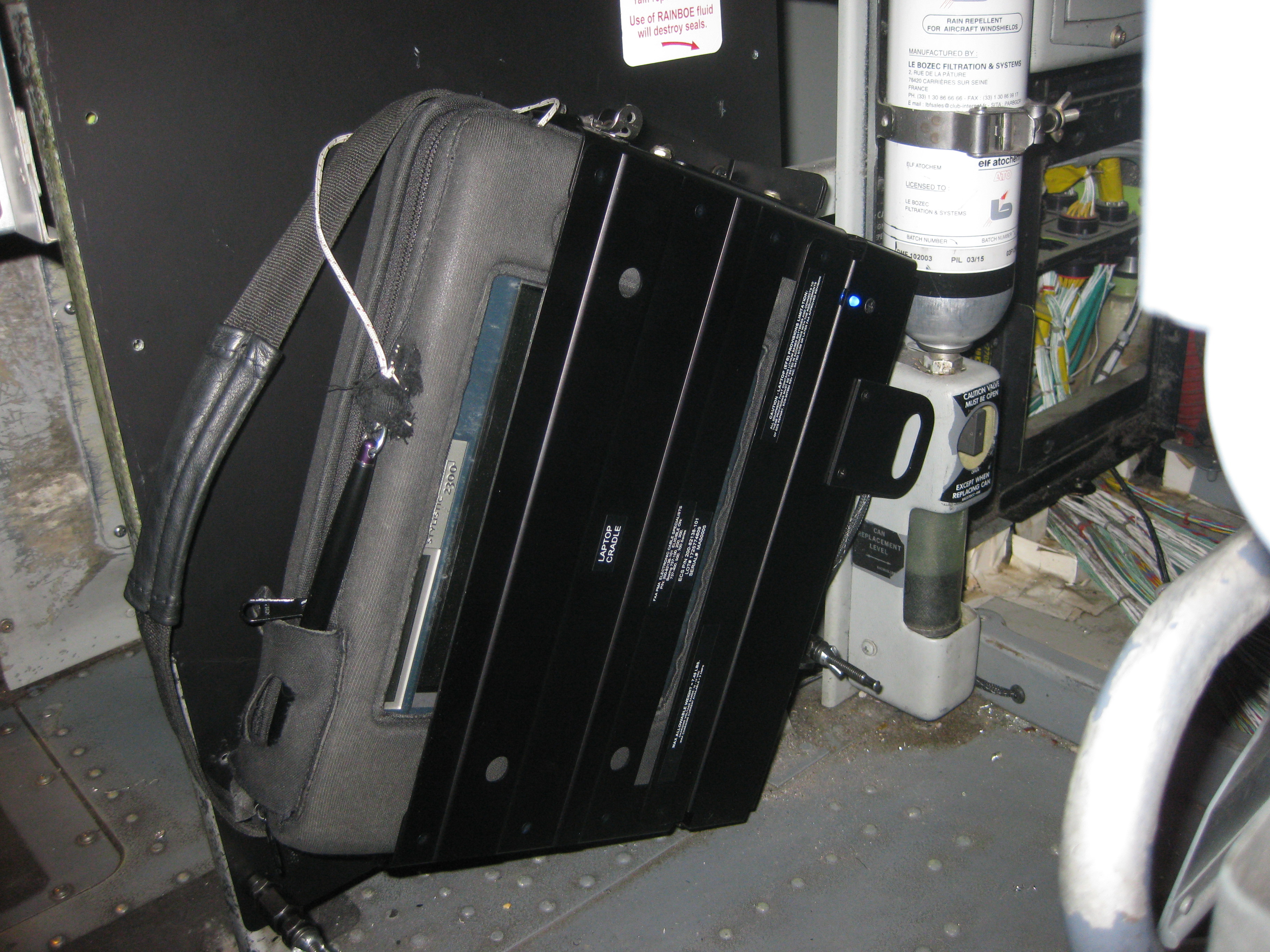

The existing log book holder on the second observer’s seat legs will be removed and replaced with a Laptop Stowage/Charger Assembly.
Your benefits
The assembly approved by STC ST01118CH allows flight crews to stow a laptop computer when the device is not in use. In addition, the aircraft modification incorporates the ability to charge the laptop computer’s battery while the device is stowed.
