Installation of EFB tablet mounting device on cockpit of B737 NG / MAX
Overview
Introduction
Installation of two tablet cradles and arm mounts on cockpit of last generation of B737 (including MAX) for holding computer tablet (e.g. iPad mini) used as “Electronic Flight Bag” (EFB).
Your needs
Secured EFB tablet mounting device for Captain First Officer.
Your benefits
About this EFB mounting device :
- Allows a variability of tablet orientation and tilt as per pilot convenience (Rotation: 360º with 20º Tilt Angle).
- Provides a mechanical support against flight and abuse loads (30 daN required while most of on-the market EFB mounting devices are limited to 10 daN).
Product Description

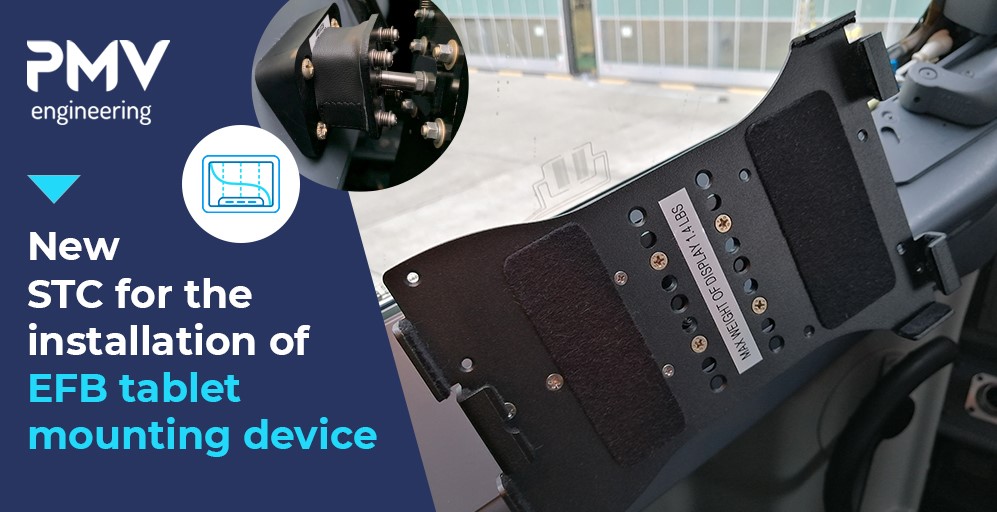

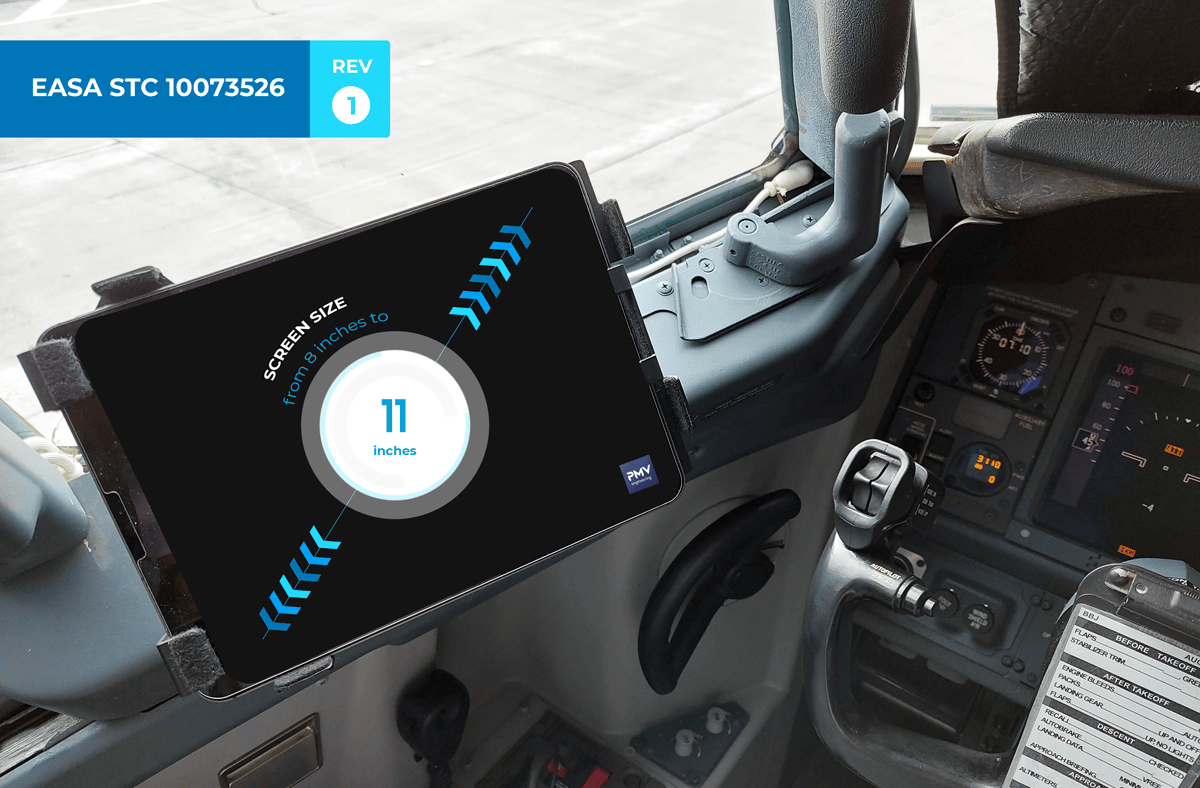

The modification consists on the installation of a “CfMount”(stands for “Constant Friction Mount”) and “Cradle” on the Cockpit Sliding Window (CSW) frame, on both Captain and First Officer sides.
The CfMount and Cradle are designed to hold a portable tablet computer used as an EFB for pilots in cockpit.
Your benefits
About this EFB mounting device :
- Allows a variability of tablet orientation and tilt as per pilot convenience (Rotation: 360º with 20º Tilt Angle).
- Provides a mechanical support against flight and abuse loads (30 daN required while most of on-the market EFB mounting devices are limited to 10 daN).
