Third Occupant Seat - Installation of Shoulder Strap Guide Assy
Overview
Introduction
CAA safety Notice SN-2024/005 makes awareness of a significant number of reports of third occupant seat shoulder straps being incorrectly routed through the top of the seat backrest instead of through the slot in the headrest. Recommendation is made for a fleet check and continued monitoring by maintenance and flight crews.
Incorrect routing of the shoulder straps will lead to ineffective operation of the restraint system and may result in injury to the occupant during rapid deceleration, heavy landing or turbulence.
Your needs
- Guarantees correct routing of the third occupant occupant restraint shoulder straps.
- Flight crew safety.
- Prevents safety/ARC findings atributable to incorrect routing of the third occupant restraint shoulder straps.
- Addresses regulator safety concern.
- Operator corrective action in advance of potential Airworthiness Directive.
Your benefits
- Addressed the safety concerns raised by CAA Safety Notice SN–2024/005 and mitigates against the recommendations given therein.
- Ensures correct function of the third occupant restraint system and flight crew safety.
- Simple and effective design.
- <15-minute installation time.
- Factory type finish, colour matched to headrest structure.
- Effective to Third Occupant Seat P/N 16800-01-00, installed across all A320 family models
- Developed in partnership with major A320 family operator.
- 400+ units sold and in service across three major A320 family operator fleets.
- Operation and maintenance of the third occupant seat and its restraint system not affected.
Product Description

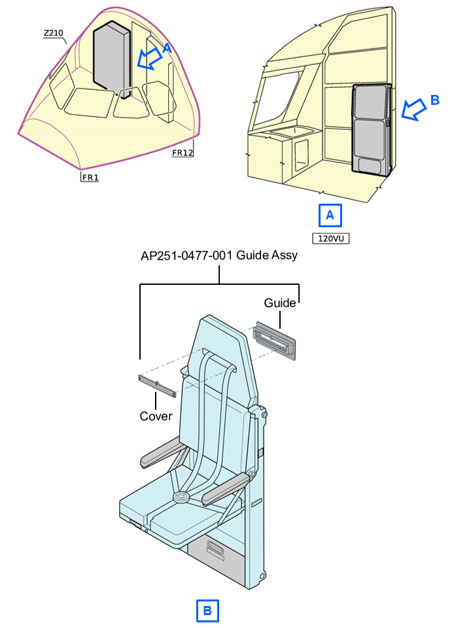

This modification installs a P/N AP251-0477-001 Guide Assembly in the third occupant seat headrest to ensure correct routing of the restraint system shoulder straps, presenting the shoulder strap connector end to the occupant in the approved configuration. The shoulder straps are routed through the gauged slot in the guide assembly with insufficient gap to allow the shoulder strap connector end to recoil through the headrest.
Your benefits
- Addressed the safety concerns raised by CAA Safety Notice SN–2024/005 and mitigates against the recommendations given therein.
- Ensures correct function of the third occupant restraint system and flight crew safety.
- Simple and effective design.
- <15-minute installation time.
- Factory type finish, colour matched to headrest structure.
- Effective to Third Occupant Seat P/N 16800-01-00, installed across all A320 family models
- Developed in partnership with major A320 family operator.
- 400+ units sold and in service across three major A320 family operator fleets.
- Operation and maintenance of the third occupant seat and its restraint system not affected.
